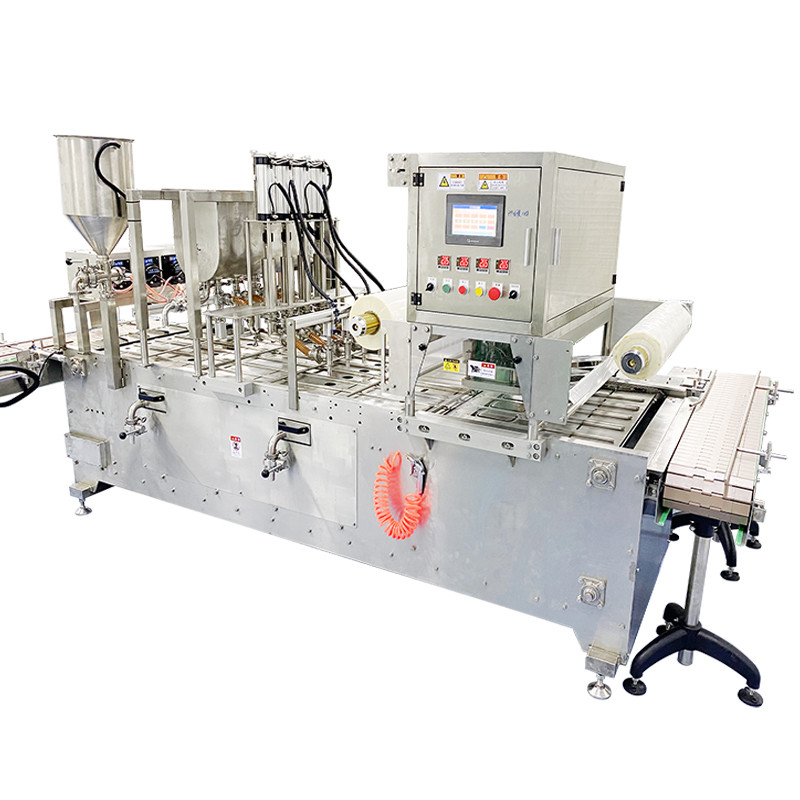

Tray filling and sealing machine with pneumatic system
1. Introduction
Designed as a highly flexible and productive vacuum packaging system, it is ideal for quick-frozen food,fresh beef, sefood,pork, lamb, poultry, ready-to-eat, processed meats, and cheese . Designed with ergonomics, safety, and hygiene in mind, it is easy to use, clean, and maintain. Machine intelligence can optimize performance and ensure the highest levels of productivity, reducing rework with features like automatic fault handling, seal control, and adaptive speed control.
PLC Electrical control system Pneumatic system
2.Technical Data
| Specifications: |
| Model |
ATFS-4 |
| Type |
Manual/Semi-Auto/Full-Auto |
| Frame Thickness |
6mm |
| Current Voltage |
3P 380v/50hz |
| Power |
5.2kw |
| Sealing temperature |
0-300℃ adjustable |
| Tray Size |
L:240mm W:150mm H:55mm or Customized |
| Sealing Material |
Aluminium foil film /Plastic (PP/PE/AL/) |
| Production |
2400-3000 trays/hour |
| Pressure |
0.6-0.8Mpa |
| Vacuum |
optional |
| Conveyor |
yes |
| Safeguard procedures |
No |
| Color |
Silvery |
| G.W. |
1000kg |
| Dimensions |
3500×1300×1800mm |
| Remark |
It is a standard model,the above data for your reference.
Please according to your actual demand customization
|
3. Customization
- Machine Body:Stainless Steel
- Pneumatic Systems: AirTac
- Servo System: Mitsubishi
- Reducer:Hangzhou JIE brand
- PLC:Mitsubishi
- Touch Panel:Taiwan WEINVIEW
- PID thermostat controller:OMRON
- Sensor:OMRON,Panasonic
- Other electrical:CHNT,Omron etc.
- Remark: Part of the above can be customsized
4.Packing and Shipping
We will wrap the films around the machine to propect,and then put in the wooden case fixed,confirm it not move or become damaged in transit. The wooden case is then sealed and labeled with the “Shipping Marks”and other relevant shipping docs. After this, the package is ready for shipping Through the third-party carrier by sea ,air,train
5. Support and Services
1. If you have any queries about the operation or maintenance of the machine, please contact us and we will be happy to help.
2.Warranty :1year
6.FAQ
How to Choose the Right Tray Sealer?
The choice of packaging machinery requires careful consideration of technical specifications, labour requirements, worker safety, maintenance, and flexibility. If you’re struggling to find the right machine, JACPACK Packaging’s Packaging Specialists can conduct a packaging audit of your facility to determine the best machine and materials for your needs.
At JACPACK Packaging, we take the complex problem of food packaging and simplify it by leveraging the expertise of our Packaging Specialists. JACPACK is proud to offer a full complement of packaging consumables, both direct and indirect. No matter your product’s requirements, we’ll tailor a solution that will revolutionize the way you pack – guaranteed. Contact us today
