Name: 0.15mm Vacuum Tray Sealer Machine PLC Controlled For Meat Lamb
Brand: WENZHOU JACPACK PACKAGING MACHINERY CO.,LTD
SKU: ATS-2-VG
Availability: InStock

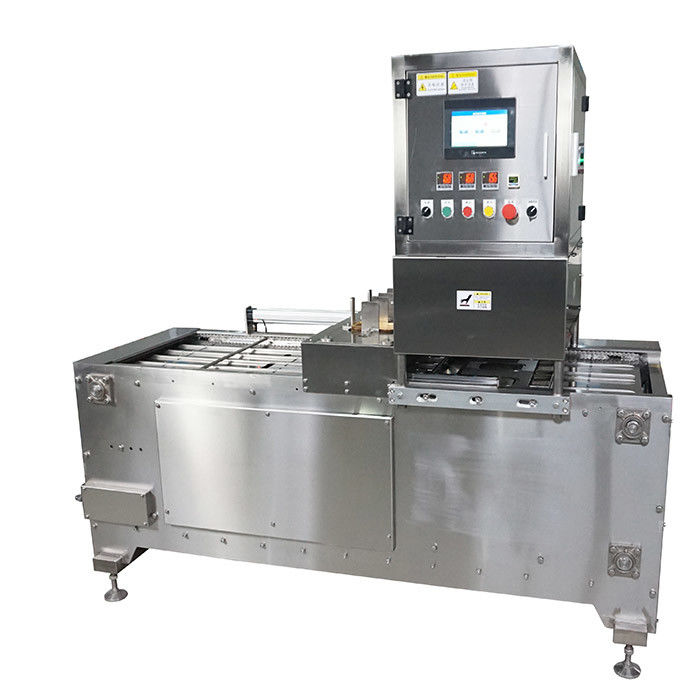

0.15mm Vacuum Tray Sealer Machine PLC Controlled For Meat Lamb

Basic Information

Place of Origin:	Made in China
Brand Name:	Jacpack
Certification:	CE,TUV,FDA,etc.
Model Number:	ATS-2-VG

Minimum Order Quantity:	1set
Price:	Price negotiable
Packaging Details:	wooden case
Delivery Time:	30-60days
Payment Terms:	T/T
Supply Ability:	30sets

Contact Now

Weight:

650KG

Max Tray Size:

240*150mm

Control System:

PLC

Dimension:

2200*1000*1800mm

Sealing Width:

10-150mm

Material:

Stainless Steel

Highlight:

Vacuum Tray Sealer Machine PLC

0.15mm Vacuum Tray Sealer Machine

150mm automatic tray sealing machine

PLC Control Vacuum Tray Sealer Machine 0.15mm Max Film Thickness

Product Description:

The Vacuum Tray Sealer Machine is an ideal solution for efficient cup filling sealing, washing and gas-filled processes. It utilizes a 1.5KW power system combined with a PLC control system for a precise level of accuracy. Its sealing width is adjustable between 10-20mm, while its maximum film width is 600mm. This machine is also designed with a 1 year warranty, guaranteeing top quality performance.

Features:

Product Name: Vacuum Tray Sealer Machine
Power: 4.8KW
Control System: PLC
Air Pressure: 0.6-0.8Mpa
Max Film Thickness: 0.15mm
Gas-filled: Yes optional
Skin packing: Yes optional

Technical Parameters:

Parameter	Details
Product Name	Vacuum Tray Sealer Machine
Power	4.8KW
Air Pressure	0.6-0.8Mpa
Max Film Width	600mm
Sealing Width	10-150mm
Max Tray Size	240*150mm
Warranty	1 Year
Weight	650KG
Max Film Thickness	0.15mm
Material	Stainless Steel
Packing Speed	10-20 trays/min
Sealing Quality	High

Applications:

Jacpack Vacuum Tray Sealer Machine is a perfect choice for packing, production line, and Skin packing. It is made in China with 1 year warranty. It has the dimension of 2200*1000*1800mm, the voltage of 380V, and the power of 4.8KW. With the sealing speed of 0-12m/min, it is an efficient and reliable machine for many packaging applications.

Customization:

Jacpack Vacuum Tray Sealer Machine - Customized Service

Product Features

Brand Name: Jacpack
Place of Origin: Made in China
Warranty: 1 Year
Weight: 680KG
Voltage: 380V
Max Tray Size: 240*150mm
Air Pressure: 0.6-0.8Mpa

Our Advantages

We have a professional production line for the Vacuum Tray Sealer Machine and we provide custom-tailored washing program to meet the customers' needs.

Support and Services:

Technical Support and Service for Vacuum Tray Sealer Machine

We provide comprehensive technical support and service for our Vacuum Tray Sealer Machine. Our expert technicians and engineers are available to help you with any issues you may have regarding the machine. We offer the following services:

Installation and setup
Troubleshooting and repair of any malfunctions
Regular maintenance and cleaning
Parts replacement and upgrades
Training and education on proper use and care

Our technical support and service team is available by phone, email, or online chat 24 hours a day, 7 days a week. We strive to respond to all inquiries within 24 hours.
