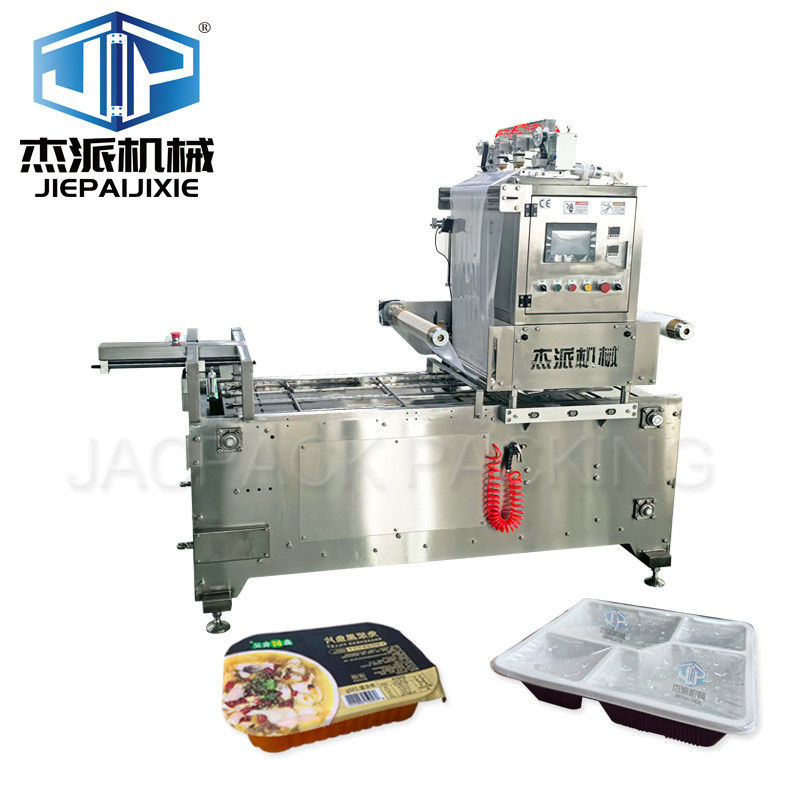

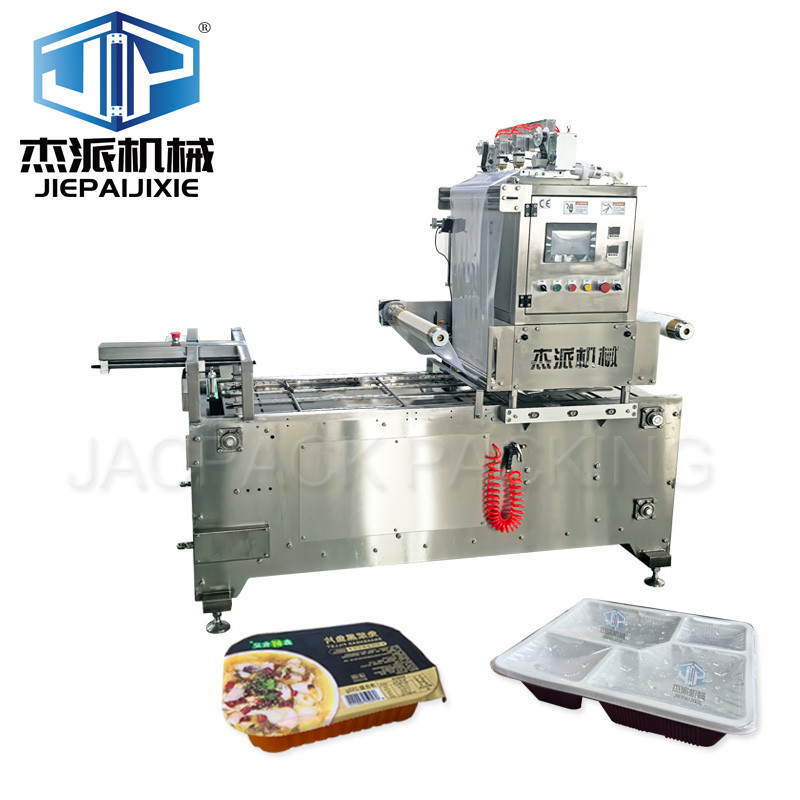

vacuum sealing machine for food tray heat seal with mold replacement

Basic Information
Place of Origin: Made in China
Brand Name: Jacpack
Certification: CE,ISO,etc.
Model Number: ATS-2VG
Minimum Order Quantity: 1 set
Price: Price negotiable
Packaging Details: wooden case
Delivery Time: 30-40days
Payment Terms: T/T
Supply Ability: 100pc
Dimension: 2200*920*1700mm Material: Stainless Steel
Application: Drinks, Oil, Dairy Products, Skin Care Products, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning Max Film Thickness: 0.15mm
Voltage: 380V/50Hz Control System: PLC
Sealing Speed: 1000trays/hour Air Pressure: 0.6-0.8Mpa

Product Description:

The Linear tray Vacuum Gas-flushing Sealing Machine is an advanced packaging system designed for industrial-scale food preservation and product protection. Utilizing vacuum extraction and gas replacement technology, it significantly extends product shelf life while maintaining optimal freshness.



Technical Parameters:

Parameter Specification
Machine Type Linear Continuous Operation
Vacuum Degree ≥98%
Sealing Length Customizable
Production Capacity 1000trays/Hour
Power Supply 380V/50Hz (3-Phase)
Power Consumption 3.5kW
Machine Dimensions 2200×920×1700mm (L×W×H)
Net Weight 720kg


Applications:

Enhanced Food Preservation:
Oxygen content ≤1% after packaging

Flexible Packaging:
Compatible with various tray types and sizes(mold replacement)

Energy Efficiency:
Automatic standby mode reduces power consumption by 30%

User Safety:

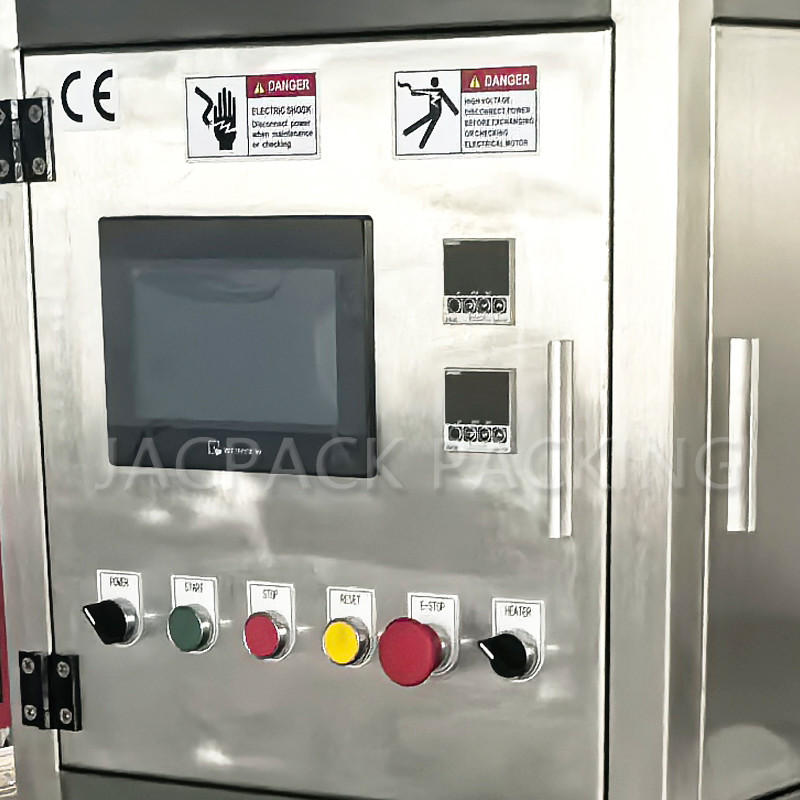

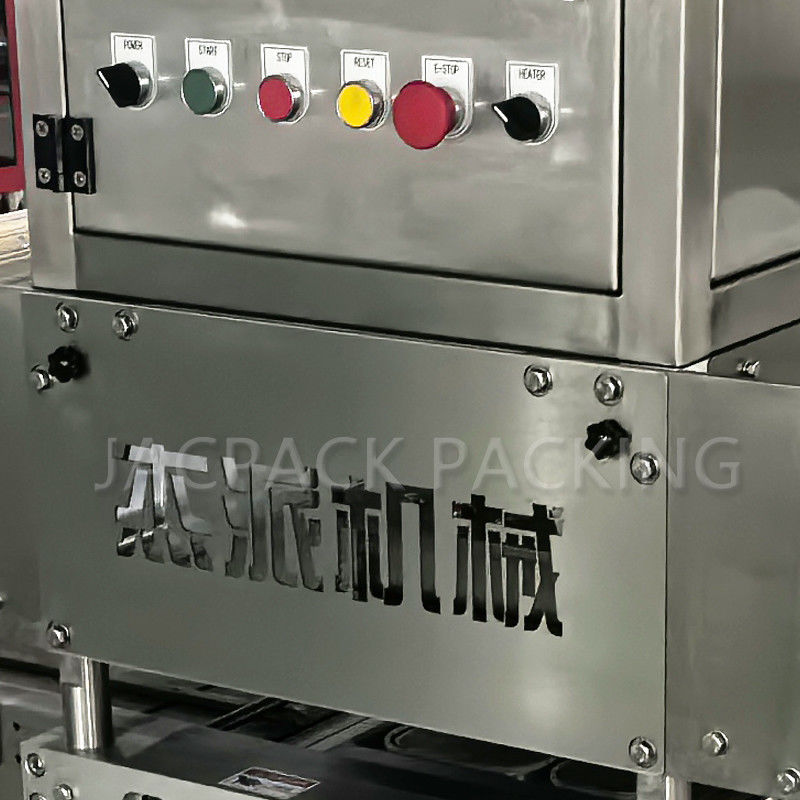

Emergency stop function and protective covers

Easy Maintenance:
Quick-access components and self-diagnosis system





ABOUT US:

Our company has been deeply engaged in the field of packaging machine. According to the premise of a large number of on-site use habits and long-term stable operation, we constantly optimize the equipment to make the machine easier to operate the equipment, more convenient maintenance, .and simple but not simple equipment.
"Because of focus, so professional". With excellent product quality,reasonable price,beautiful shape and perfect service, the company has won the trust and praise of users, and its products are exported to more than 100 countries and regions such as Europe, America,East Asia and the Middle East. We will continue to adhere to the principle of "sincerity and trust".

vacuum sealing machine for food tray heat seal with mold replacement 0

FAQ:

Q: What is the brand name of the Vacuum Tray Sealer Machine?

A: The brand name is Jacpack.

Q: What is the model number of the Vacuum Tray Sealer Machine?

A: The model number is ATS-2VG.

Q: Where is the Vacuum Tray Sealer Machine manufactured?

A: It is made in China.

Q: What certifications does the Vacuum Tray Sealer Machine have?

A: It has CE, ISO, and other certifications.

Q: What is the minimum order quantity for the Vacuum Tray Sealer Machine?

A: The minimum order quantity is 1 set.
